1. Use:

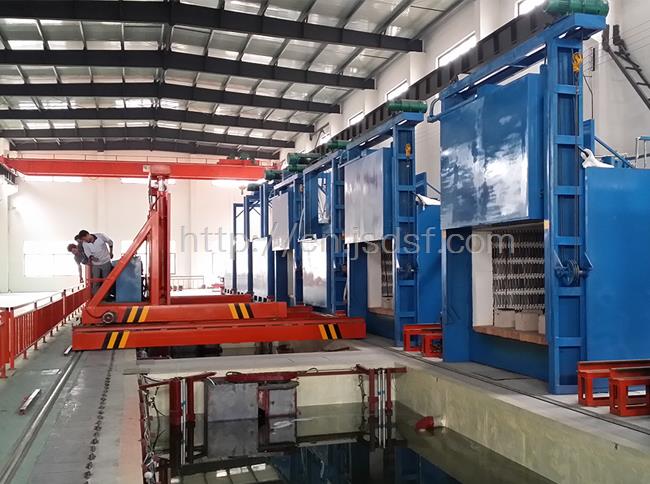

The rapid quenching furnace is a periodic high temperature operation furnace, mainly for the general small and medium-sized forgings, castings, etc. at rated temperature heating, and use the forklift to operate the workpiece water (oil) rapid quenching heat treatment. Quenching transfer time: ≤45 seconds.

Ii. Brief introduction of structure:

(1) The equipment is composed of a furnace body and a moveable forklift.

(2) The shell of the furnace body and the trolley are welded with high-quality steel plates and sections.

(3) The heating element adopts the high resistance alloy HRE resistance belt produced by Shougang to arrange the furnace side, the furnace door, the back wall and the bottom, and the heating on five sides improves the furnace temperature uniformity.

(4) The furnace lining is made of Shandong Luyang high temperature fiber module cotton, and the bearing part of the furnace bottom is made of heavy firebrick to enhance the structural strength of the furnace lining and improve the thermal insulation performance of the furnace body.

Three, the main technical characteristics

The electric furnace is mainly composed of furnace body (steel structure), furnace lining, furnace door lifting and sealing device, special forklift, forklift driving mechanism, electric heating device, temperature control and recording system and other main parts.

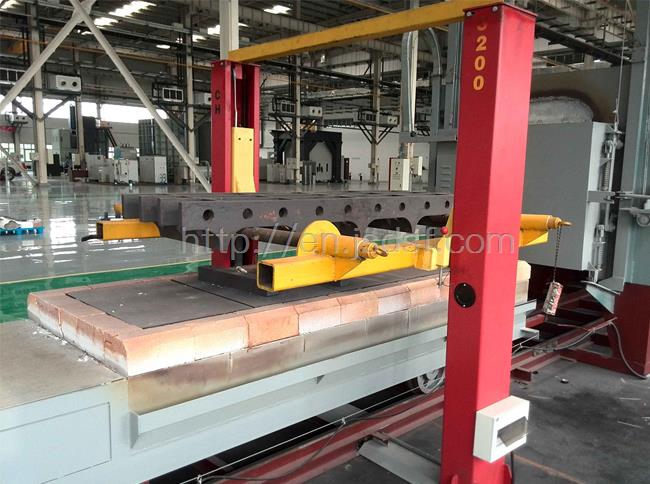

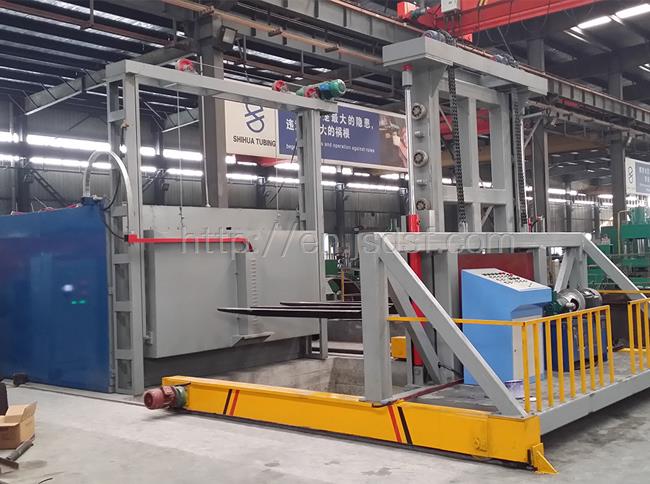

Four, special forklift

The special forklift is arranged in front of the quenching furnace, and has an independent track and transmission device, which can carry the workpiece in and out, the left and right translation and the up and down lifting. One forklift is available for both quenching and tempering furnaces.
