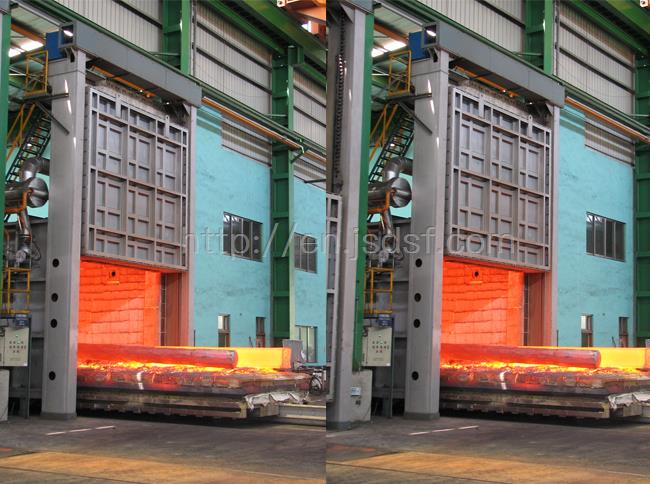

Technical features of trolley forging furnace:

The forging furnace adopts all-fiber lining, all-sealed furnace body, pressure automatic control of each medium, furnace pressure automatic control, high temperature and high speed automatic burner. Computer + intelligent temperature control instrument + manual three-level temperature control mode, low energy consumption, high stability.

Purpose:

Forging heating treatment working temperature: 1300℃, temperature control accuracy: ±1℃ loading capacity: 5T-200T burner model and control mode: SIO high temperature and high speed burner, air-fuel automatic proportional combustion, two-stage pulse control, gas automatic ignition, flare-up alarm forging furnace door adopts lifting type, cylinder four-point pressing forging furnace car adopts double-layer balance frame wheel pair structure, heat-resistant cast iron guard plate, and obtuse gear and rack self-moving structure forging furnace body is light steel frame structure. The bottom lining of the furnace wall is high temperature castable, and the furnace wall and top are fiber lining. The side seal is cylinder driven lifting soft seal temperature control mode: upper industrial computer distributed control/intelligent temperature control instrument +PLC control/manual control
