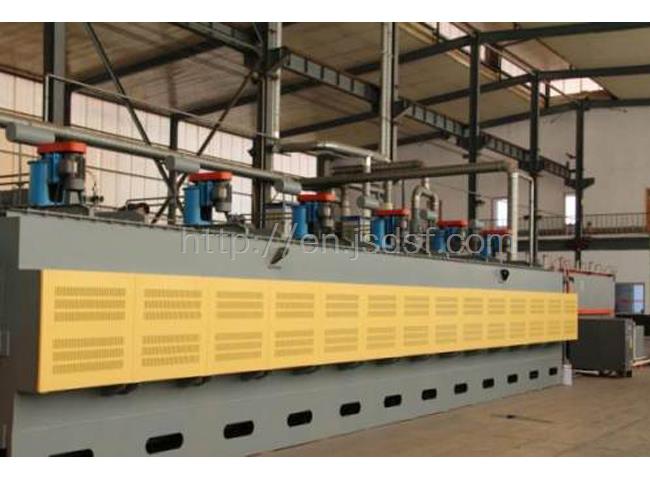

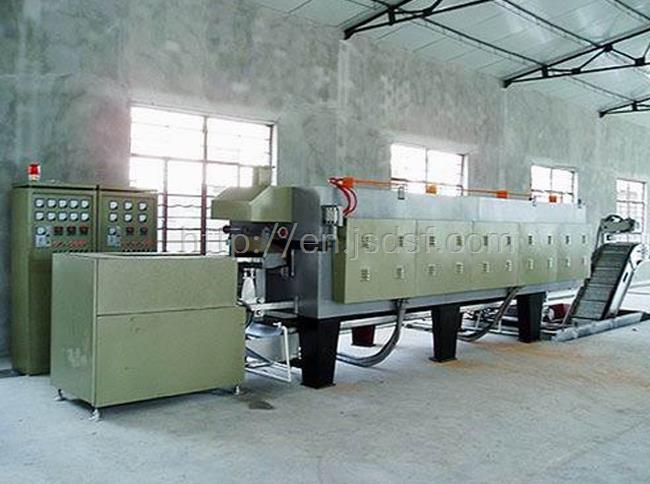

Net belt type atmosphere protection bright furnace

Continuous operation heat treatment production line is a continuous automatic control heat treatment furnace.

1. In the heat treatment process, the workpiece does not collide with each other, and smoothly and evenly passes through the heating furnace of the protective atmosphere, so that the workpiece achieves the surface brightness and the requirements of the heat treatment process under the action of the protective atmosphere and high temperature

Net belt type atmosphere protection bright furnace

2. The furnace has the advantages of high degree of automation, easy adjustment of parameters, low labor intensity, no pollution to the environment, energy saving, etc., can be widely used in the scissors and blade industry, light industry machinery, textile machinery, weapons industry, mechanical and electrical industry mass production of "medium and small" type workpiece heat treatment.

Applicable to:

Steel strips, steel tools, small mechanical parts, etc. are heated without oxidation at high temperatures and then cooled without oxidation. It can also be used for sintering of powder metallurgy, annealing of magnetic materials and some small metal parts, such as annealing, quenching and bright annealing of stainless steel in the case, watchband, kitchenware industry, especially the quenching of Cr13 stainless steel, stainless steel solution treatment. No industrial pollution, high output, less power consumption, save ammonia gas.

Structural features:

High-temperature heating chamber, high-temperature steel belt, steel belt driving mechanism, cooling chamber, ammonia decomposition device and control system are composed. The workpiece is heated by moving with the steel strip in the high-temperature Muffle tank, and then enters the cooling zone, and is cooled rapidly under the action of the water-cooled jacket heat transfer or air scour to achieve the purpose of bright treatment. Heating area upper and lower heating wire heating. Electric heating element replacement is very convenient, does not affect the production, safe and durable.
