How it Works:

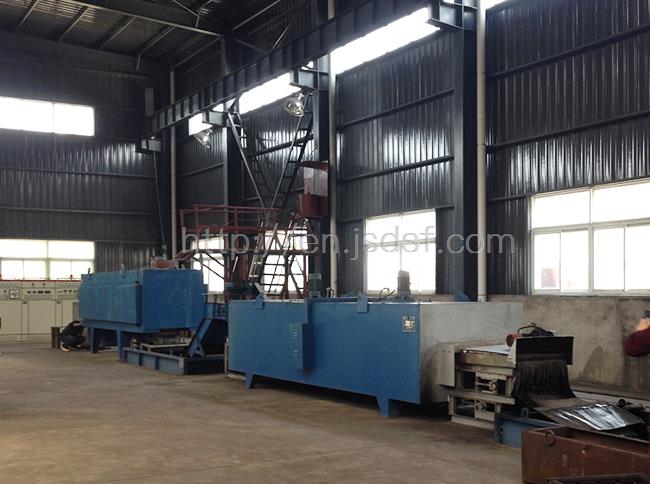

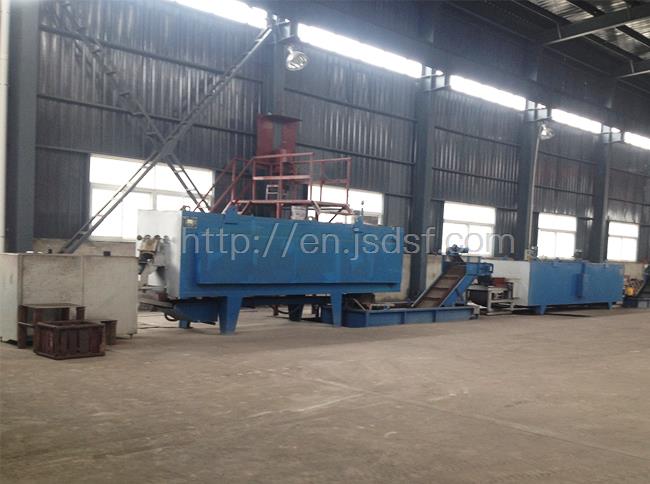

The mesh belt quenching furnace is a continuous heat treatment furnace that uses the intermittent mesh belt to pass the workpiece through the temperature-controlled heating area, and then falls into the quenching oil tank, and is automatically taken out by the elevator. It can carry out heat treatment processes such as quenching, thin-layer carburizing and carbonitriding under controlled atmosphere. In the process of heat treatment, the workpiece does not collide with each other, the balanced heating through the furnace, coupled with the action of controlled atmosphere, to prevent air from entering the furnace. Therefore, the surface of the processed workpiece is smooth, no decarburization, uniform surface, small deformation and high quality. The equipment has the advantages of high degree of automation, easy adjustment of parameters, low labor intensity, no environmental pollution, energy saving and so on. The equipment can be combined with spray type cleaning machine and net back furnace to form an automatic assembly line. And can be added with black hair blue, oil, drying production line.

Applications:

Suitable for batch of small and medium-sized mechanical parts (such as standard parts, bearings, transmission chains, self-tapping screws, textile hardware, hand tools, springs, spring pads, auto parts, etc.). It can provide conditions for users to carry out heat treatment process debugging and workpiece heat treatment pilot test.

Product features:

1. The mesh belt drive rotates synchronously with the support of rollers, the operation is stable and stable, the mesh belt tension is small, and the service life is effectively extended;

2. The preheating chamber is set in the front section of the quenching furnace, and the net belt is used to return the residual heat to preheat the work, saving energy;

3. The heating element is inserted electric radiation tube, easy to replace. Use transformer low voltage power supply to prolong the service life of radiation tube.

The following functions can be configured according to user requirements

1. The temperature recorder can record the temperature curve of the whole process of work, and can choose the mid-circle chart recorder or the paperless recorder.

2. Centralized computer control, a computer can remotely control the temperature control program setting, temperature curve record and other functions of multiple electric furnaces, easy operation and reliable control.
