The car type tempering furnace is mainly used for heat treatment of general large and medium metal or alloy parts at rated temperature.

Purpose:

Car type tempering furnace, mainly used for high chromium cast steel roll tempering, roll surface welding repair to eliminate welding stress tempering and other purposes, belongs to energy-saving cycle operation tempering furnace, using microcomputer process curve automatic temperature control cabinet, automatic high-precision implementation of high-precision tempering process curve.

Used for 35, 45, high chromium, high manganese steel castings, gray cast iron, ductile iron, roll, tubing, steel ball, crusher hammer, wear-resistant liner, large welding parts quenching, annealing, tempering and various mechanical parts heat treatment. The resistance furnace is composed of electric trolley, furnace shell, furnace lining, furnace frame, electric furnace door, automatic control system, etc.

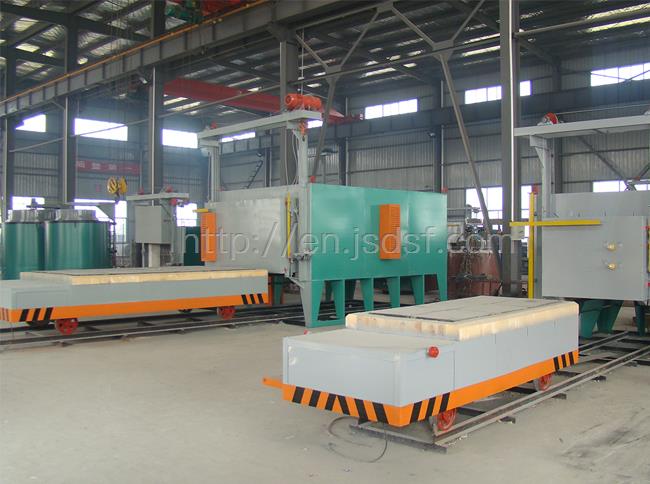

Brief introduction of structure:

The trolley type tempering furnace adopts composite lining or all-fiber heat preservation. The heat convection loss of the trolley furnace is reduced by self-sealing mechanism between the furnace body and the trolley, and the efficient heat preservation performance of the trolley furnace is realized. The tempering car furnace adopts multi-zone heating, and the top of the furnace is installed with stainless steel hot air circulating fan, hot air circulating at high speed, and the hot air circulating stainless steel ventilation system designed by the heat treatment technology center of our company is installed inside, and the temperature uniformity is very high.

Features:

1. Trolley, furnace door electric, easy loading and unloading, high production efficiency;

2. Automatic temperature control system, regular automatic operation, automatic power off at the end of operation, overtemperature alarm;

3. Dual high-power electrical appliances, over current, over temperature protection, unattended, safe and reliable.

4. Uniform heating, improve the quality of heat treatment;

5. Power adjustable
