Applicable to:

Net back furnace is suitable for tempering of chain, industry standard parts bicycle parts tools and other parts. The mesh furnace is equipped with a powerful fan to force the air to flow and achieve the same temperature for each workpiece. The straight-rod heating element is easy to service and replace. Network belt running smoothly, stepless speed regulation.

It is suitable for mass production of all kinds of standard parts, bearings, bicycle parts, hardware, textile parts and so on. It can be combined with mesh belt quenching furnace and cleaning machine to form an automatic assembly line. Power 20-90kW, rated temperature 600℃.

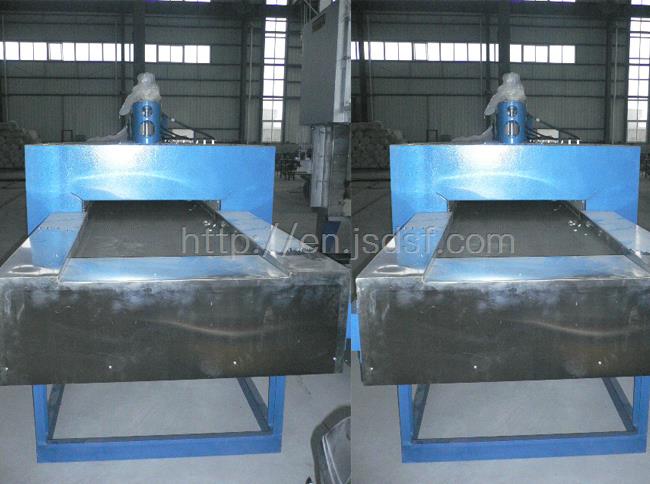

The mesh belt tempering furnace uses a continuous running mesh belt to transport the workpiece through a temperature-controlled heating area, so as to achieve the purpose of tempering the workpiece.

Advantages:

High strength stainless steel wire woven into mesh belt, long service life;

The transmission mechanism is simple and reliable, and the speed of the mesh belt is stepless and adjustable.

The use of large impeller forced circulation fan makes the furnace air flow speed up, improve the heat transfer efficiency, the furnace temperature uniformity;

It is easy to replace the heating element without removing the top and shell.

The furnace lining is made of aluminum silicate fiber cotton, which has good heat preservation performance.

High precision instrument, reliable performance, easy to operate.

Performance characteristics:

It is equipped with a powerful fan to force air flow and achieve the same temperature for each workpiece. The straight-rod heating element is easy to service and replace. Network belt running smoothly, stepless speed regulation.
