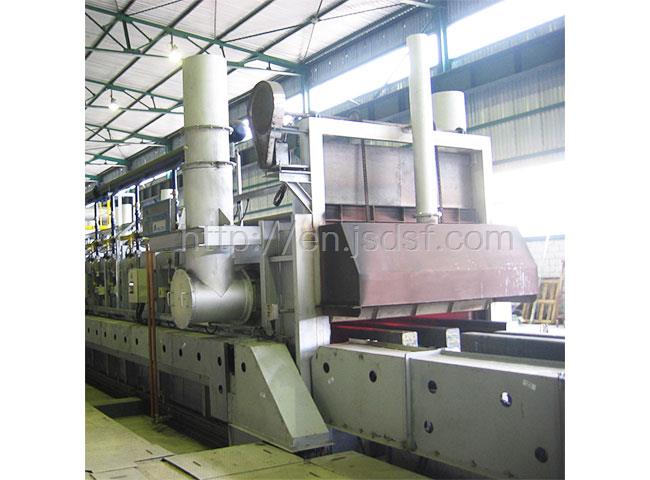

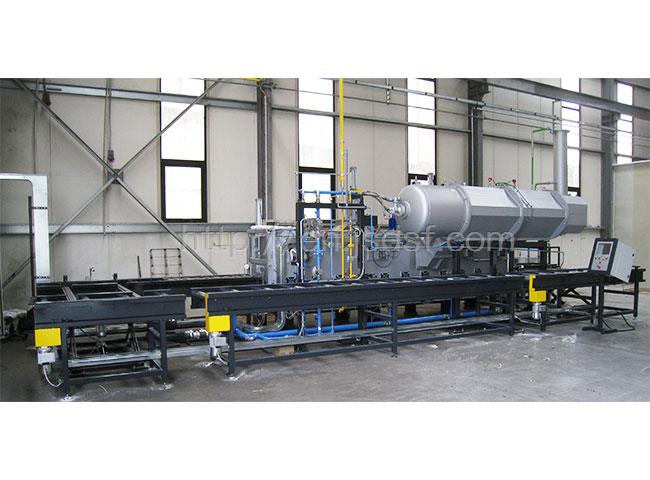

Description: Suitable for medium and large steel casting (positive) fire treatment and steel structural parts stress relief annealing heat treatment process.

Main parameters:

Temperature: 650℃-1300℃

Temperature difference: ±1℃

Loading capacity: 10t

Adaption material: carbon steel, alloy steel parts welds

Product Introduction:

Fuel to the workpiece heating, there are direct injection in the furnace and indirect radiation, according to the requirements of the product selection. Use of high temperature circulating fan to strengthen the furnace temperature uniformity. And set a reasonable temperature system to complete the annealing of the product

Equipment features:

1. Fiber lining structure, less heat storage, fast heating speed.

2. Using cylinder compression sealing, the furnace body sealing effect is good.

3. Electromagnetic braking, variable frequency speed regulation, stable and reliable walking.

4. High-speed gas burner, automatic ignition, flame monitoring.

5. Combustion control mode: pulse combustion, continuous proportional adjustment.

6. Advanced control system: computer control system, program temperature control system, PLC action control system, pressure control system.
