intro

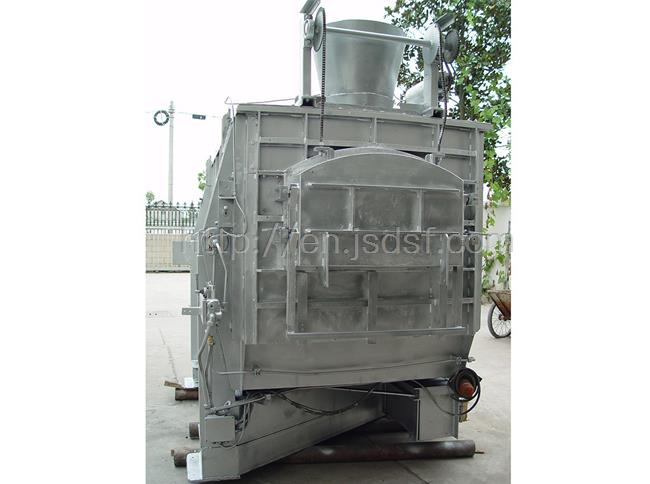

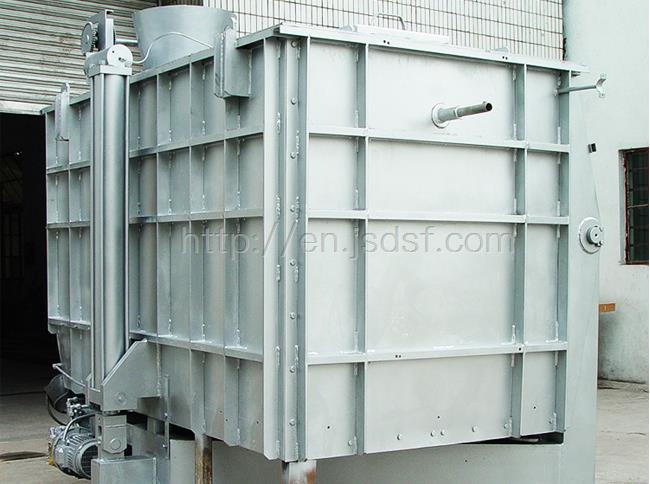

Centralized melting furnace is an aluminum alloy melting and insulation equipment. The central melting furnace adopts tower structure, automatic feeding, continuous melting, has the advantages of high thermal efficiency, low burning loss, high degree of automation, long service life. The split proportionally adjusted burner keeps the temperature in the furnace within the set range, effectively controls the production of oxides in the furnace, and further reduces the oxidation burning loss. Aluminum alloy central melting furnace is widely used in aluminum alloy die casting industry.

advantage

1, can be applied to a variety of fuels, natural gas, liquefied gas, diesel

2, the use of imported low-speed infrared and flame combustion to melt, can reduce the production of oxides, melting chamber Fei Wei preheating chamber and melting chamber, the average burn rate of 1.2%

3. More energy efficient. In the melting process, the filter material in the preheating zone is preheated by the mature waste heat recovery technology, which reduces energy consumption and has a high thermal efficiency of up to 50%

4, with a special furnace structure, high-quality heat cut-off materials and refractory materials, the furnace body is very little heat dissipation, the furnace surface temperature rise is less than 25°C, reduce energy consumption, improve the working environment

5, automatic feeding device, by lifting, opening, lowering, closing the furnace cover continuous work completed at one time, control system using PLC programmable controller, advanced and reasonable design, safe and reliable operation, with computer communication function
