Overview:

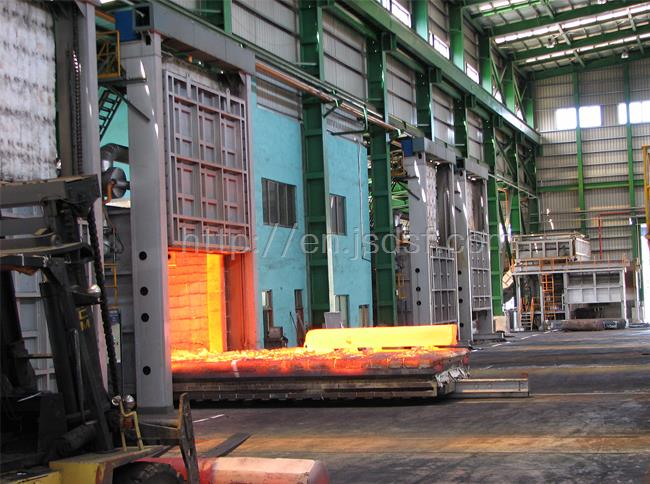

Forging furnace is the basic heating equipment for heating forging materials in forging shop. Its main characteristics in the production process are: forging variety, specifications, batch small; The weight of the forging is different, small to dozens of grams, large to hundreds of tons, therefore, there are many kinds of forging heating furnaces, and the size of the size of the furnace is very different, and the selected furnace type is different.

Features:

Forging furnace is generally based on chamber type furnace, and the furnace structure is simple. Forging furnace is not easy to continuous production, not easy to mechanized operation, so it is suitable for small batch production of a single piece, the weight of the workpiece is generally not more than 3 tons, the bottom area of the furnace is not more than 6 ~ 10M3. The workpiece heating of medium and small free forging hammer should adopt single chamber heating furnace, the workpiece variety is small and the batch is large, and the double chamber heating furnace should be used to heat the tire film before the die forging hammer or free forging hammer. More than 2 tons of free forging hammer, especially used for ingot opening heating when the use of single-chamber double-door chamber heating furnace.

Product features:

1, the use of fire-resistant hanging structure, increase the width of the kiln: than the traditional chamber forging furnace, loading more products; The width increases, the depth can naturally be reduced, so that the forging into the furnace, the speed of the furnace is accelerated; The width increases, the number of burners laid is more, and the way of multi-number and low-power can be adopted, which is far more scientific and energy-saving than the way of laying burners on both sides. The uniformity is also improved, and it can be cross-fired through the burner, combined with the heat storage refractory box, greatly saving energy consumption.

2. Design the furnace door structure with composite refractory prefabricated parts and high-density fiber modules:

The fire-resistant prefabricated parts can be designed with multiple seals to ensure the sealing of the furnace door. Refractory materials are better than traditional cast iron plate and other materials, and their service life is several times longer;

The multi-channel seal makes the pressure of the fiber module small, and it can also design a variety of sealing materials. The temperature-resistant seal and the supporting seal are separated by different materials, ensuring that the furnace door fiber is used for many years without deformation and need not be replaced.

3. The furnace bottom is prefabricated with high temperature castable and then installed after sintering, which is better than the toughness and thermal shock of the traditional high aluminum brick laying or the whole casting of the furnace bottom. The temperature of the forging furnace is not high, the ordinary pouring material can not be sintered, the strength can not come out, and the nature is poor; The temperature is not high, the material can not be converted into mullite phase thermal shock effect will not be good, the use of casting prefabricated high temperature sintering, will change this problem, the effect of thermal shock resistance is very good.
