Apply

Widely used in electronic ceramics, metallurgy, electronics, glass, chemical industry, machinery, crystal, powder metallurgy, nanomaterials, metal parts, electronic components, refractory materials, new materials, powder materials, special materials, building materials and other fields in the inert atmosphere of sintering production and experiment.

Technical parameter

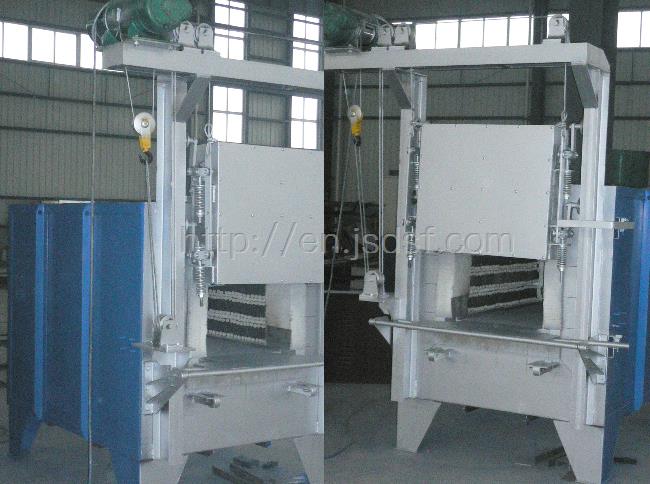

Equipment name: 1700 ℃ atmosphere furnace

Device model: MXQ1700-30

Heating size: Depth 200* Width 150* height 150mm

Furnace volume: 4.5L

Temperature: 1700 degrees (1 hour)

Operating temperature: ≤1600 degrees (continuous)

Power supply: single-phase 220V 50/60Hz 5Kw

warming

Heating element: silicon molybdenum rod, left and right sides heating

Heating rate: 20℃/min

Temperature measurement

Temperature measuring element: Type B thermocouple

Temperature control

Temperature control instrument: digital display instrument, intelligent 30-segment PID programmable control.

Temperature control accuracy: ±1℃, overtemperature alarm

Keep warm

Insulation material: polycrystalline alumina fiber material, good insulation effect, less heat loss.

Atmosphere: Inert atmosphere, such as nitrogen, argon, etc.

Water cooling: furnace door ring water cooling zone, delay the aging speed of the seal ring.

Vacuum: -0.04MPa

Air pressure: 0.02MPa
